The Ultimate Architect & Builder Guide to Waterline Tile: Material, Sizing, and Longevity
A technical comparison of glass, ceramic, and porcelain waterline tile: sizing, freeze-thaw grout performance, and saltwater compatibility.
Waterline tile takes more physical abuse per square foot than almost any other surface in a pool build: constant water-chemistry exposure, UV at the splash line, scale buildup from evaporation, and freeze-thaw cycling at the grout joint in climates like North Texas. This guide gives architects, pool builders, and designers the material science, sizing logic, and maintenance planning needed to specify waterline tile correctly the first time.
Porcelain vs. glass vs. ceramic waterline tile: how to choose
Porcelain is the strongest all-around choice for most Texas pool builds because of its low water absorption and high resistance to thermal cycling, though glass tile remains the standard for maximum color saturation and light reflection in high-end designs.
The three material families used for waterline and pool tile each trade off differently on durability, cost, and installation complexity. The comparison below reflects general, industry-recognized material behavior for each category — always confirm the specific rated performance of the exact tile line and setting materials being specified, since formulation varies by manufacturer.
| Criterion | Glass Tile | Porcelain Tile | Ceramic Tile |
|---|---|---|---|
| Water absorption | Effectively zero (impervious) | Very low (vitrified body) | Low to moderate (depends on glaze/body) |
| UV / color stability | Excellent — color is fused through the material | Excellent — color body is fired, not surface-applied | Good, but surface glazes can fade faster under sustained UV |
| Typical unit cost | Highest | Mid-range | Lowest to mid-range |
| Installation difficulty | Higher — often mesh-mounted, requires experienced setter | Moderate — standard wet-set methods apply | Moderate — most familiar to general tile setters |
| Chip/impact resistance | Can chip at edges under impact | High — dense fired body resists chipping | Moderate — more prone to chipping than porcelain |
| Best-fit use case | Feature bands, accent rows, maximum color depth | Full waterline runs, high-traffic pool edges, budget-durability balance | Budget-conscious builds, lower-traffic residential pools |
Tile format and sizing: 6x6 vs. 6x20 vs. 6x24
Larger-format waterline tile (6x20, 6x24) reduces the total linear footage of grout joints along the waterline, which matters because grout joints are the most common failure and staining point at the water's edge — fewer joints generally mean less long-term maintenance exposure, but larger formats require a flatter, more precisely prepared substrate to avoid lippage.
- 6x6 format: highest joint density, most forgiving on wall flatness and pool-shell curves, widely available in the broadest color/pattern range including mosaics.
- 6x20 format: moderate joint reduction, works well on long straight runs, a common middle-ground choice for rectangular and geometric pools.

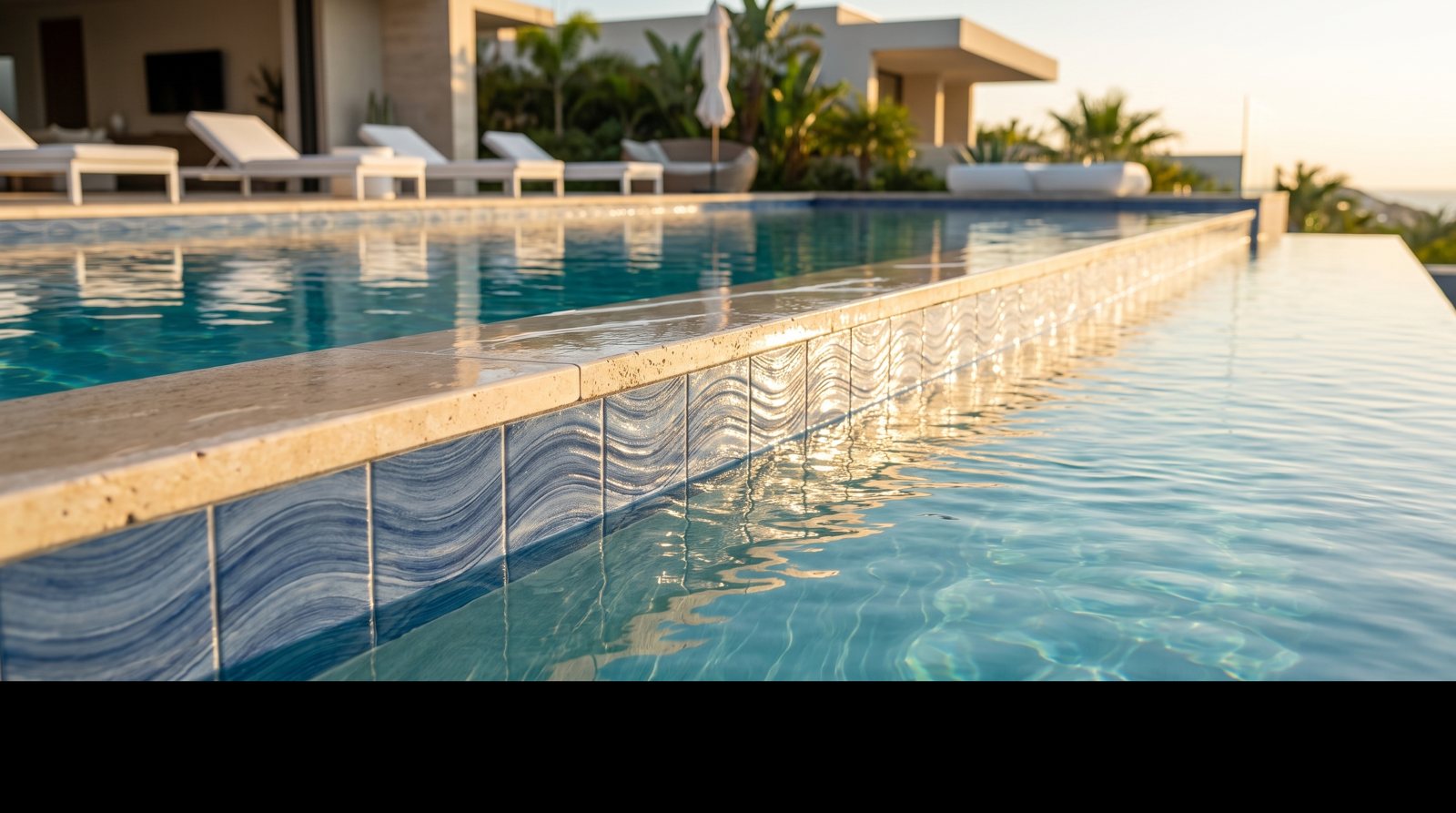

- 6x24 format (often glossy): lowest joint density of the common formats, creates a more contemporary, seamless waterline appearance, but demands tighter substrate tolerances — typically no more than 1/8 inch of variation per 10 feet, verified before setting.
Freeze-thaw performance at the grout joint
In North Texas and similar climates, the waterline experiences repeated freeze-thaw cycling in winter combined with saturation from splash-out, and the grout joint — not the tile body itself — is typically the first point of failure under this stress, since water trapped in a porous or improperly cured joint expands on freezing and can crack or spall the joint.
- Specify a grout and setting-material system explicitly rated for exterior, submerged, and freeze-thaw exposure — not a general-purpose interior grout formulation.
- Joint width and depth should follow the setting-material manufacturer's exterior/submerged installation instructions; under-filled joints are a common source of early freeze-thaw cracking.
- Expansion joints should be planned at transitions (waterline to coping, waterline to plaster) so thermal movement does not concentrate stress on the tile grout line itself.
- Full cure time before pool filling should follow the setting-material manufacturer's specification for submerged exterior applications — filling the pool before full cure is a frequent, avoidable cause of early grout failure.
“The waterline grout joint fails more often from installation timeline shortcuts than from material defects. Builders who follow full cure schedules before filling see dramatically fewer callbacks for grout cracking and staining in year one.”
— Aura Stone Technical Team
Saltwater chlorination compatibility
Saltwater pools do not use raw salt as the sanitizer — a chlorine generator converts dissolved salt into chlorine — but the sustained mineral content in the water changes the compatibility requirements for tile, grout, and metal trim compared to a traditional chlorine-fed pool, so not every waterline tile and setting-material combination is validated for long-term saltwater exposure.
- Confirm the specific setting material and grout are rated for saltwater/salt-chlorination pools, not just "pool-rated" in general — the two are not always the same certification.
- Metal-look or metallic-glazed tile finishes should be checked individually for salt compatibility, since some decorative glazes and metallic trim pieces are more vulnerable to salt-driven corrosion than standard glazed or porcelain surfaces.
- Salt cell placement and water turnover near the waterline can create localized concentration zones — this is a pool-equipment design consideration as much as a tile selection one, and should be reviewed with the pool builder's equipment plan.
Preventing and managing calcium scaling in Texas heat
Calcium scaling at the waterline is primarily a water-chemistry and evaporation problem, not a tile defect — Texas heat accelerates evaporation, which concentrates dissolved calcium and other minerals at the waterline, where they crystallize as the classic white/gray scale band.
- Maintaining calcium hardness, total alkalinity, and pH within the pool water's recommended ranges is the primary control point — tile and grout selection cannot fully offset poor water balance.
- Glossy, dense surfaces (glass, glazed porcelain) generally allow easier scale removal than heavily textured or matte finishes, where scale can mechanically key into surface texture.
- Darker grout colors can visually mask early-stage scale buildup longer than white grout, which is a real maintenance-visibility tradeoff worth discussing with homeowners at material selection, not after the fact.
- Routine waterline cleaning with a pool-safe descaling product, before scale becomes heavy, is dramatically easier than removal after months of buildup — this is a maintenance-plan conversation, not just a product spec.
Common questions
Is porcelain or glass tile better for a waterline in Texas?
Porcelain is generally the more practical choice for full waterline runs in Texas due to its low water absorption, strong UV color stability, and higher impact resistance at a moderate cost. Glass tile is often reserved for accent bands or feature rows where its color depth and light reflection are the priority and the higher cost and installation complexity are justified by the design goal.
Does tile size affect how often I need to reseal or regrout?
Larger-format tile (6x20, 6x24) reduces the total linear footage of grout joints, which can reduce the maintenance surface area exposed to water chemistry over time. However, grout lifespan depends more on correct product selection, joint preparation, and cure time than on tile size alone.
Can any waterline tile be used in a saltwater pool?
No. The tile body itself is usually fine, but the setting material, grout, and any metallic trim need to be specifically rated for saltwater/salt-chlorination exposure. Always confirm this rating with the product manufacturer before specifying for a saltwater build.
Why does my pool get a white ring at the waterline every summer?
This is calcium scaling, driven mainly by evaporation concentrating minerals at the waterline — it accelerates in Texas heat. It is primarily addressed through water chemistry management (calcium hardness and alkalinity control) and routine cleaning, not solely through tile choice, though glossy and denser surfaces are generally easier to keep clean.
How long should I wait to fill the pool after waterline tile installation?
Follow the specific setting-material and grout manufacturer's cure schedule for submerged exterior applications. Filling before full cure is one of the most common, avoidable causes of early grout cracking and staining at the waterline.
